March 12. 2018

Tips for Microscope Maintenance - Part II

Your students may have many issues while working with microscopes. These tips will help you assist them in addressing the problems and acing the scientific world.

8. How to change the focal length of a Dissection Microscope?

Some dissection microscopes have screw on the back of the pole, this allows you to move the head up or down which changes the focal length. (Watch the video)

9. The best storage method for your microscopes

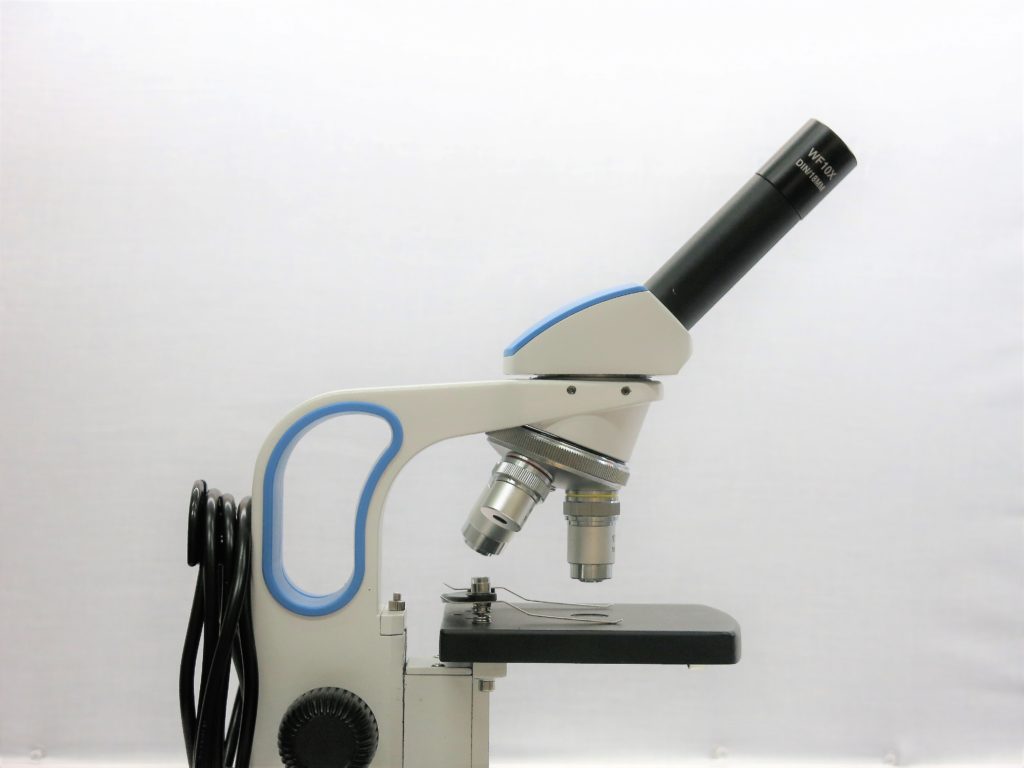

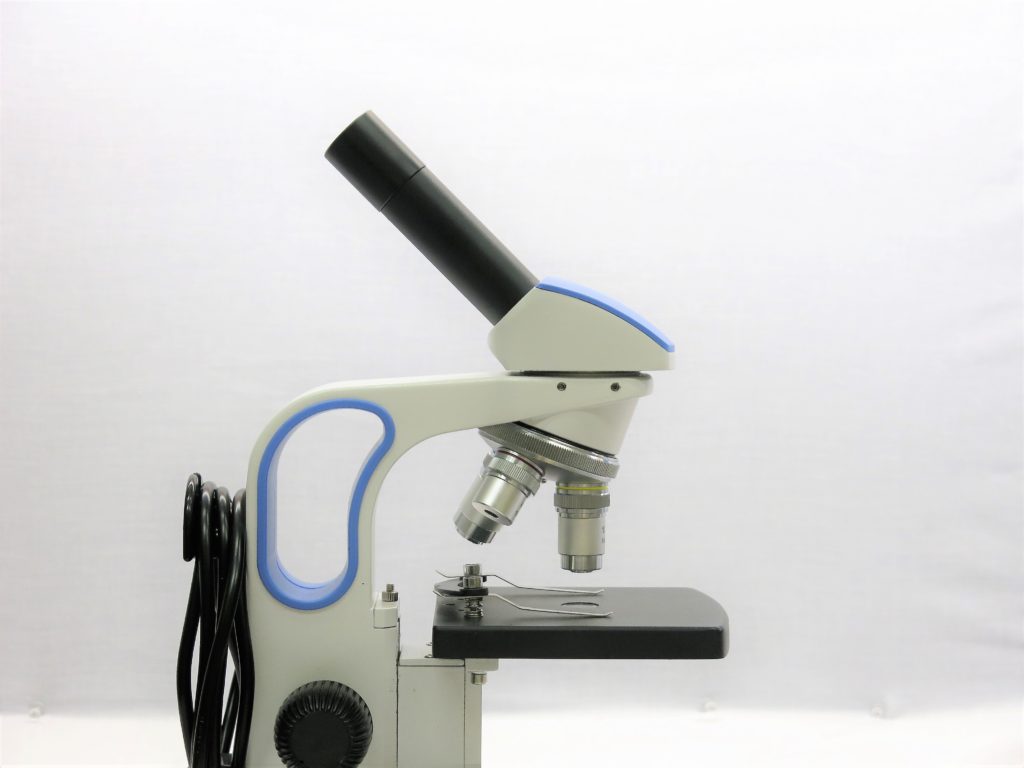

The best way is to cover your microscopes and store them with the most compact (See photos).

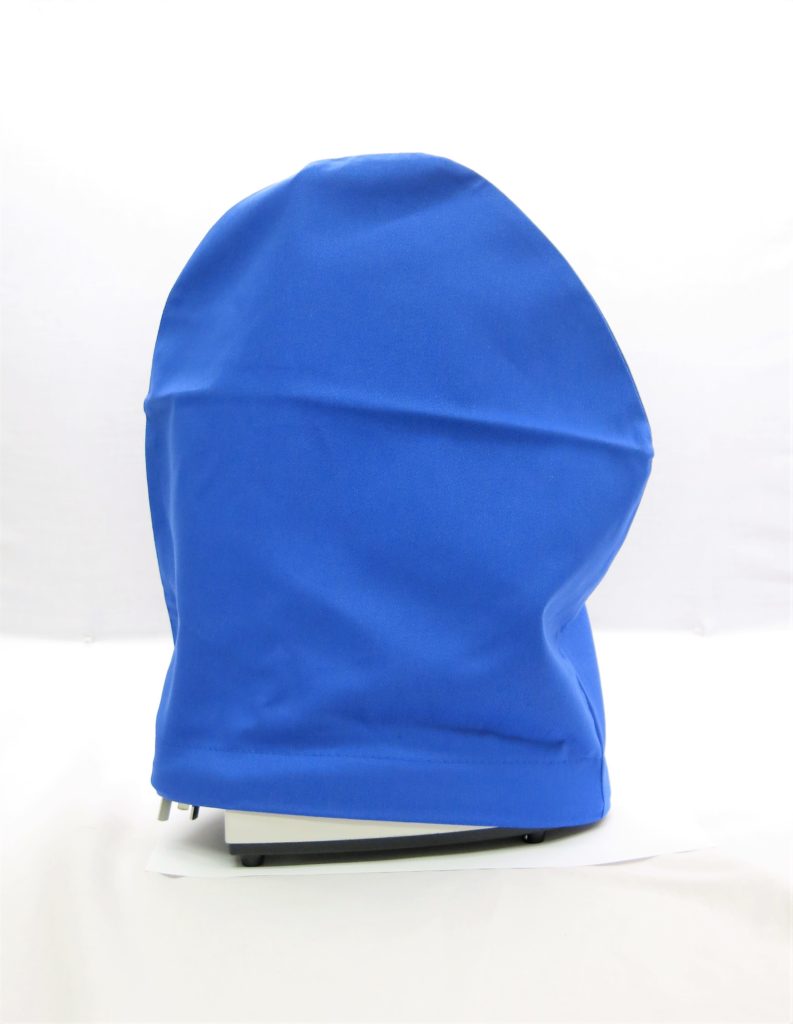

Cover the microscopes when you do not need to use them

Not Recommended

Recommended

10. The eyepiece grub screw went missing?

The grub screw holds the eyepiece into the eyepiece tube, this stops the eyepiece from being removed. If the grub screw goes missing, we recommend you to use a black electrical tape around the edge.

11. Rolling stage

If there is not enough tension on the course focus, the stage will roll down and the subject will go out of focus. Hence, adding tension can be different from model to model. (See the video)

12. Rolling stage

We suggest that if the microscope cover went missing or had holes in it, freezer bags would be a temporarily simple and inexpensive replacement.

to be continued…

Spread the word

March 12. 2018

Tips for Microscope Maintenance - Part I

Your students may have many issues while working with microscopes. These tips will help you assist them in addressing the problems and acing the scientific world.

1.Do not turn the slide upside down

If your students place the glass slide upside down, the glass thickness of the microscope slide will keep the subject too far away from the objective to focus. Your students will be able to focus on 4 times and 10 times only but not 40 times or above. Hence, you should ensure that your students are aware of this issue.

2. Keep the objective clean!

The objective can get dirty over time due to collecting a lot of oils from wet subjects such as onions. As a result, the dirty microscope objective impairs the resolution and generates soft and low-contrast images.

3. Lock the stage/rack stop!

It is tricky that microscopes from different manufacturers are equipped with various types of stage stops. The stage stop prevents the slide from being lifted up close to the objective and touching each other. This definitely helps eliminate the risk of breaking the slide and damaging the objective. Equally important, the microscope objective will not be able to focus if you set the stage stop wrong.

Thus, you should make sure that the stage stop of the microscope is set right and locked before handing the microscope to students.

4. Set Condenser Height

If the condenser has been moved down, it will give a different depth of field. Therefore, you should make sure that they are set the same on all microscopes.

High Height

Low Height

5. Don’t change Halogen Globe by your hand!

Halogen Globes burn very hot. if you place your fingers on the glass when changing the globe, the oil from your hand will cause a hot spot on the globe. Thus, remember to use a tissue or cloth to change the globe.

6. Replacing Objectives

If you need to replace an objective, you should ensure that objective matches the others. For example, if the 40 times is shorter than the 10 times, the microscopes would become very hard to use. You are also recommended to change all the objectives altogether.

7. Missing the stage clips of microscopes

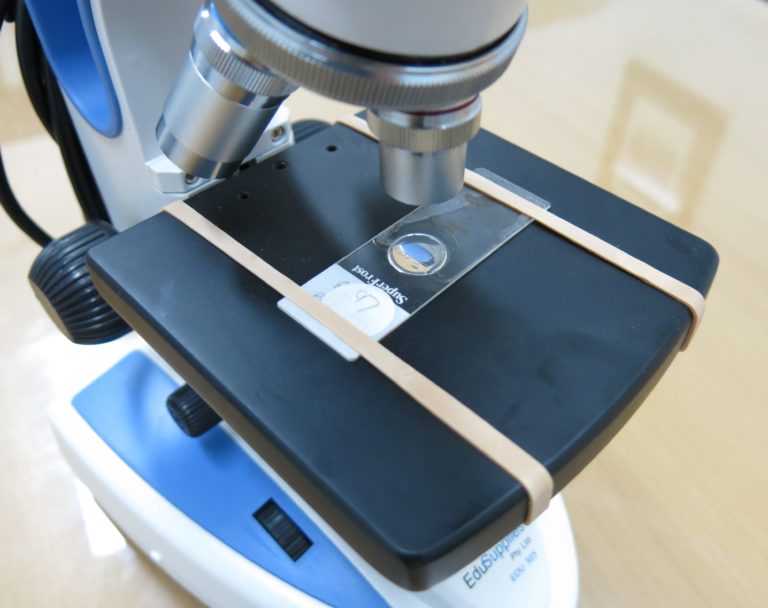

You can temporarily use rubber bands at each end of the stage to hold the slide in place.
