PX223 – 220G X 1MG
The Pioneer PX Series are ideal for laboratories, universities, and applied science applications that require exceptionally accurate and precise measurements.
The Pioneer PX series are designed to be durable and versatile and perform outstanding at an affordable price.
What makes the PX223 stand out?
Large dual-line backlit LCD display shows additional info and user prompts.

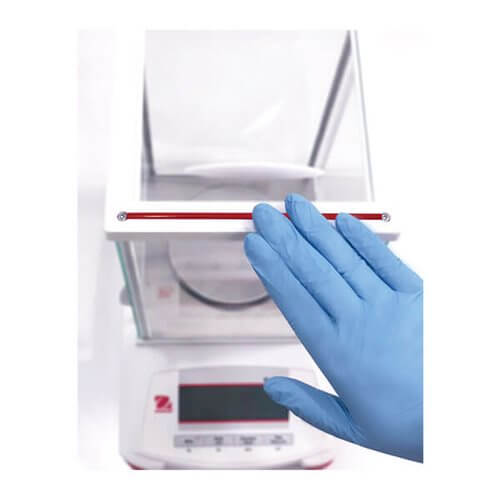

Integrated grounding rod removes static electricity to improve weighing results.
Durable design with die-cast metal base.

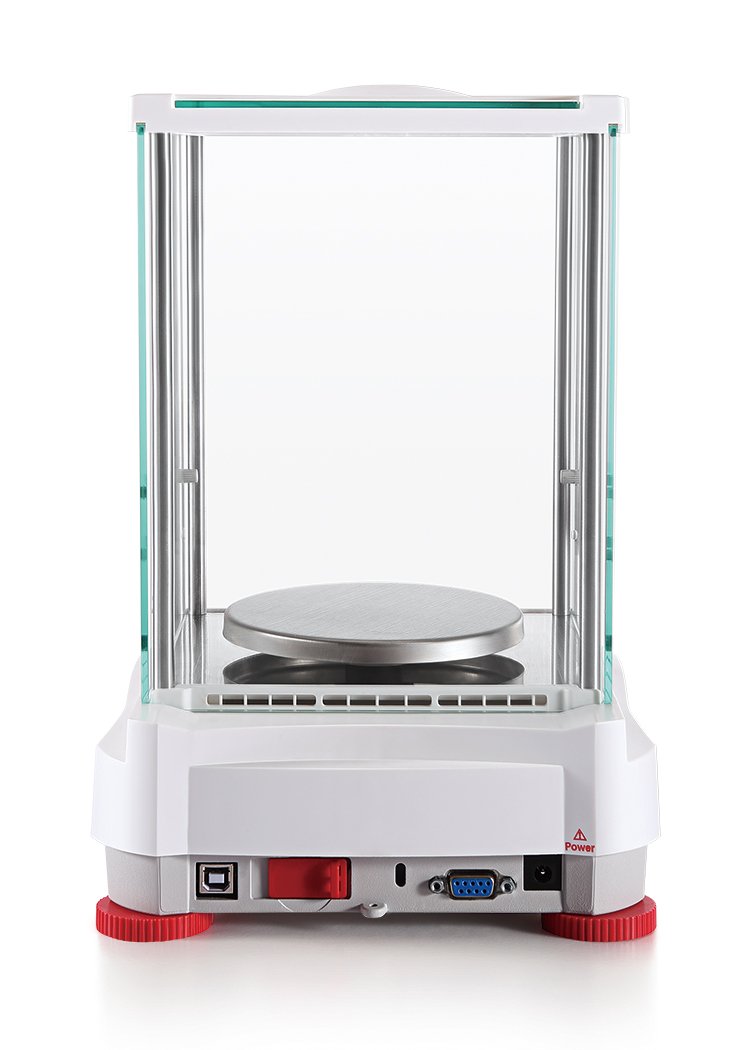

Standard RS-232 & USB ports for easy connectivity to printers and other devices.
4 quick keys allow easy operation of multiple application modes.
Application: Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display: LCD; Second line display for additional information or guidance (dot matrix)
Operation: AC Adapter (included)
Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction: Mental base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh below hook, security bracket, calibration lock and in-use cover.
Design Features: User-selectable environmental filters and brightness settings, auto tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, 4 operating languages.
Maximum capacity 220 g
Readability 0.001 g
Net Weight 4.5 kg
Minimum Weight 2 g
(USP, 0.1% typical)
Stabilisation Time 2 s
Pan Size (LxW) 120 mm
Dimension (HxLxW) 309 mm x 321 mm x 209 mm
Internal Calibration InCal™, – Semi Automatic
Battery Life N/A
Built-in lonizer No
Communication RS232; USB
Display 2-Line LCD with Backlight
In-use Cover Included
Legal for Trade No
Pan Construction Stainless Steel
Power AC Adapter (included)
Tare Range To capacity by subtraction
Units of Measurement: Milligram; Gram; Kilogram; Baht; Custom; Mesghal; Momme; Ounce; Ounce Troy; Tical; Tola; Hong Kong Tael; Singapore Tael; Taiwan Tael;
Working Environment 10°C – 30°C, 80%RH
Auxiliary Display Model Available as an accessory
