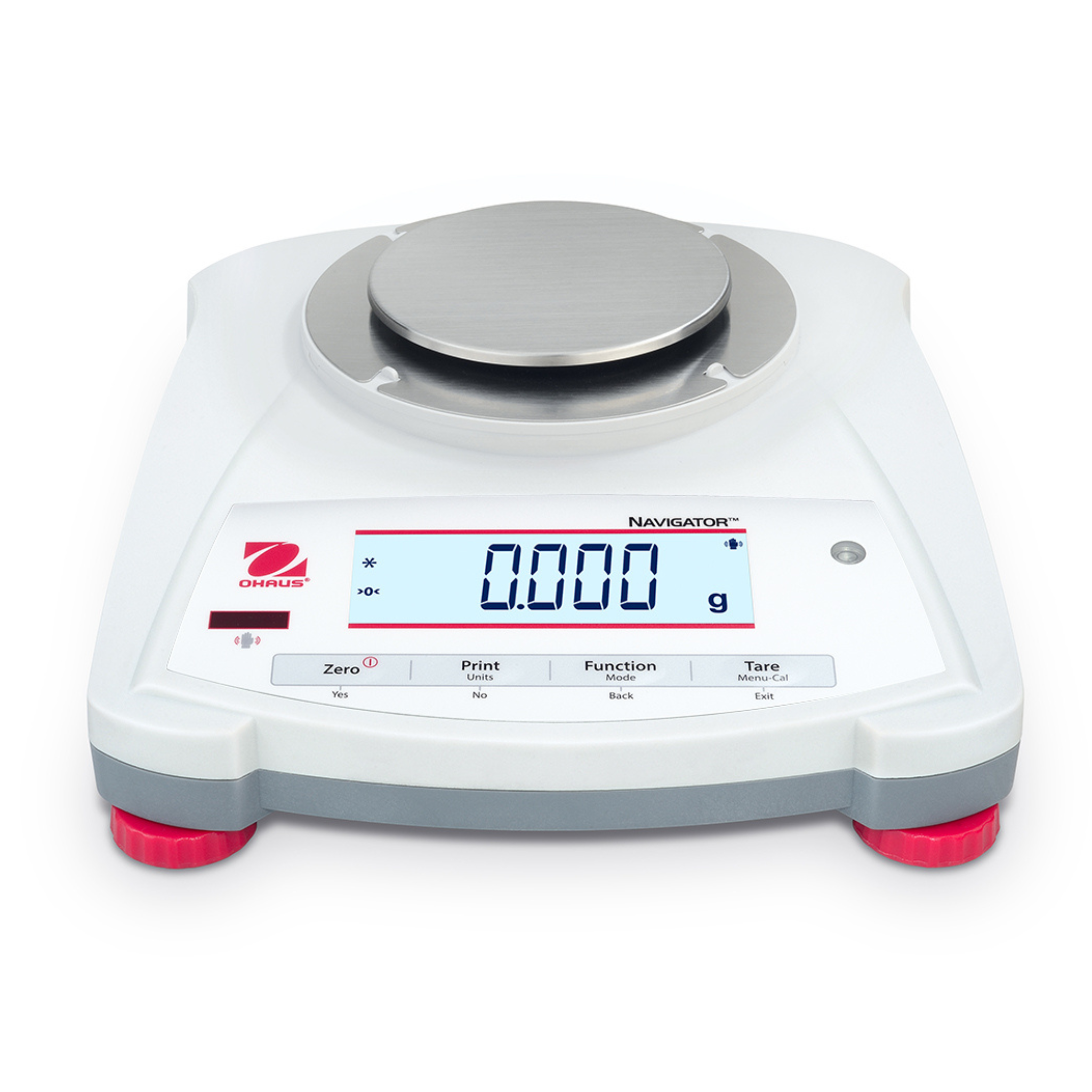

Ohaus Navigator NV223 Balance – 220G x 0.001G

$515.00 ex GST

The powerful NV223 portable balance is designed for general weighing applications in laboratory, industrial and education settings.

  • Maximum capacity: 220 g
  • Readability: 0.001 g
  • Stabilisation time: 2.5 s

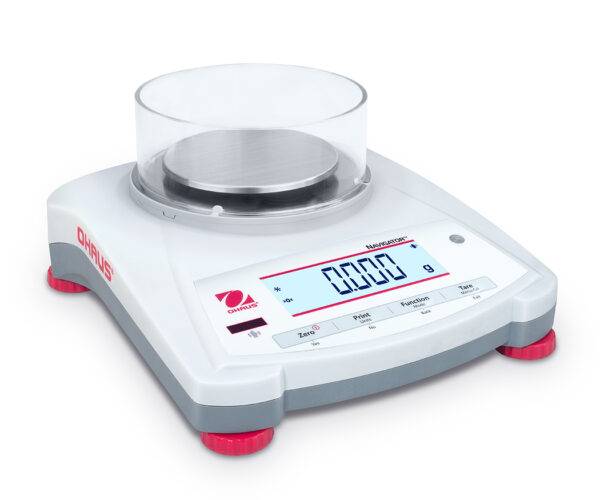

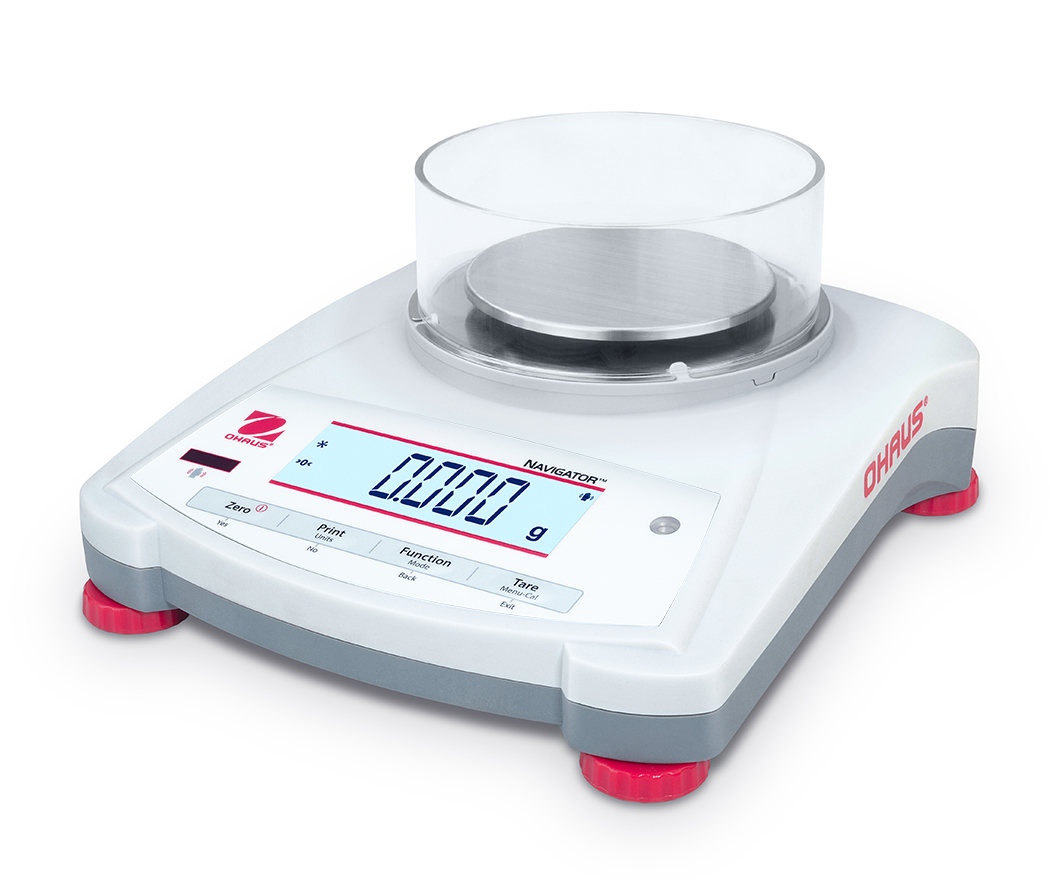

  • Removable draftshield
  • Easy operation
  • Overload protection at 4 times the rated capacity
  • Advanced software allows locking the menu settings and calibration operation
  • Diverse range of weighing applications: weighing, parts counting, percent weighing, and checkweighing.
  • Power: main adapter (included) or 4 x C type batteries (not included)
  • Weight: 1kg

Available on backorder



  • Weighing
  • Parts Counting
  • Percent Weighing
  • Checkweighing


  • Liquid Crystal Display (LCD) with backlight


  • AC adapter (included)
  • 4 C batteries (not included)


  • RS232
  • USB
  • Ethernet (available as accessories)


  • ABS housing with stainless steel pan
  • Transportation lock
  • Adjustable and slip-resistant feet
  • Leveling bubble

Design Features

  • Menu and calibration lock switch
  • Mechanical and software overload/underload protection (4x times)
  • Stability indicator
  • Low battery indicator
  • Auto shut-off
  • User-selectable print options
  • User-selectable communication settings


1-year Ohaus Australia warranty

Maximum Capacity220 g
Readability0.001 g
Pan Size3.7 in (93 mm)
Battery Life200 Hours with Disposable Batteries
CommunicationEthernet (Available as an Accessory);  RS232 (Available as an Accessory);  USB Device (Available as an Accessory)
Auxiliary Display ModelNot Applicable
Dimensions9.1 in x 4.2 in x 8 in (230 mm x 104 mm x 204 mm) (LxHxW)
DisplayLCD Display with white backlight
In-Use CoverNo
Legal for TradeNot applicable
Linearity ?0.005 g
Net Weight2.2 lb (1 kg)
Pan ConstructionStainless Steel
Power4 C (LR14) Batteries (Not Included);  AC Adapter (Included)
Repeatability, typical0.002 g
Stabilization Time2.5 s
Tare RangeTo capacity by subtraction
Transportation CaseAvailable as an Accessory
Units of MeasurementSingapore Tael;  Ounce Troy;  Pennyweight;  Newton;  Taiwan Tael;  Gram;  Grain;  Hong Kong Tael;  Tola;  Tical;  Ounce;  Carat
Working Environment50?F ? 104?F, 85%RH, non-condensing (10?C ? 40?C, 85% RH, non-condensing)
