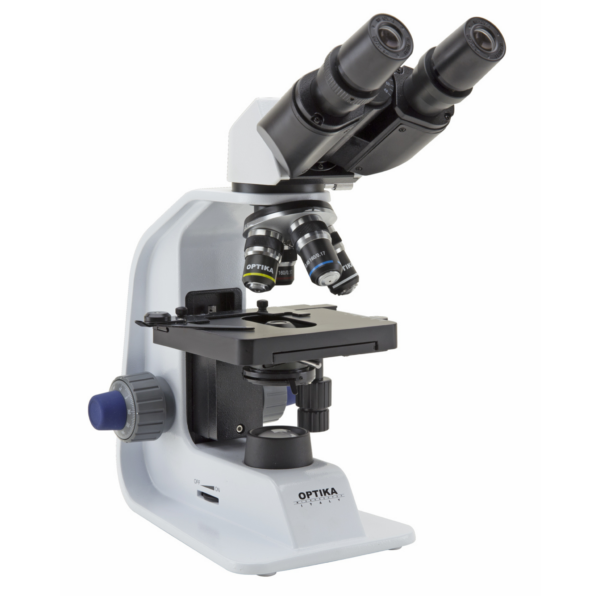

Optika B-159 Biological Microscope

$715.00 ex GST

Quantity Price
1 - 4 $715
5 - 9 $693.50
10+ $643.50

Buy more, Save more!

Optika B-159 Biological Microscope is a comprehensive binocular microscope dedicated to advanced students. It is designed to fulfil secondary schools and educational labs with over 20 years of use.

  • Made in Italy
  • 18mm field number for a wide observation area
  • Sturdy and durable for extended lifetime; compact and intuitive
  • Long lasting LED with over 20 years of use
  • External power supply for enhanced safety and convenient servicing
  • 10 Year warranty on mechanical and 2 year warranty on electrical parts. X-LED lighting has a lifetime warranty.


  • Power Supply
  • Dust Cover
  • Instructions

Maintenance Tips:

  • Wipe microscope eyepiece and objectives with alcohol-free antiseptic wipes after using wet specimen like onions


10% OFF next microscope services during their lifetime (This does not include the price of any replacement parts.)

Not sure if the microscope is right for your school? Contact us to book in a FREE TRIAL!

Available on backorder

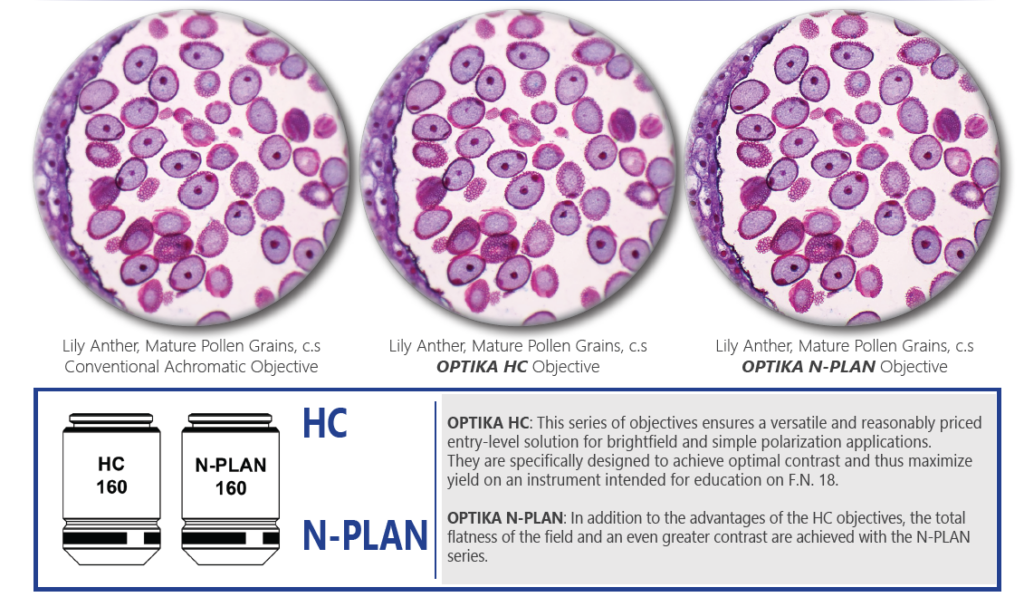

N-PLAN Achromatic Objectives

Achromatic objects ensure versatile and reasonable priced entry-level lenses for brightfield.

They are specially designed to achieve optimal contrast and thus maximise yield on the instrument.

100X with water – A new frontier in education

Same objective for oil and water use

  • Oil represents the best media for high numerical apertures
  • Water combines relevant results with convenience
  • Water is recommended especially for educational purposes

High Eyepoint Eyepieces

These eyepieces are designed in such as way that the exit pupil is further away from the eye lens than standard eyepieces, being well suited for students wearing glasses

They are specially designed to achieve optimal contrast and thus maximise yield on the instrument.

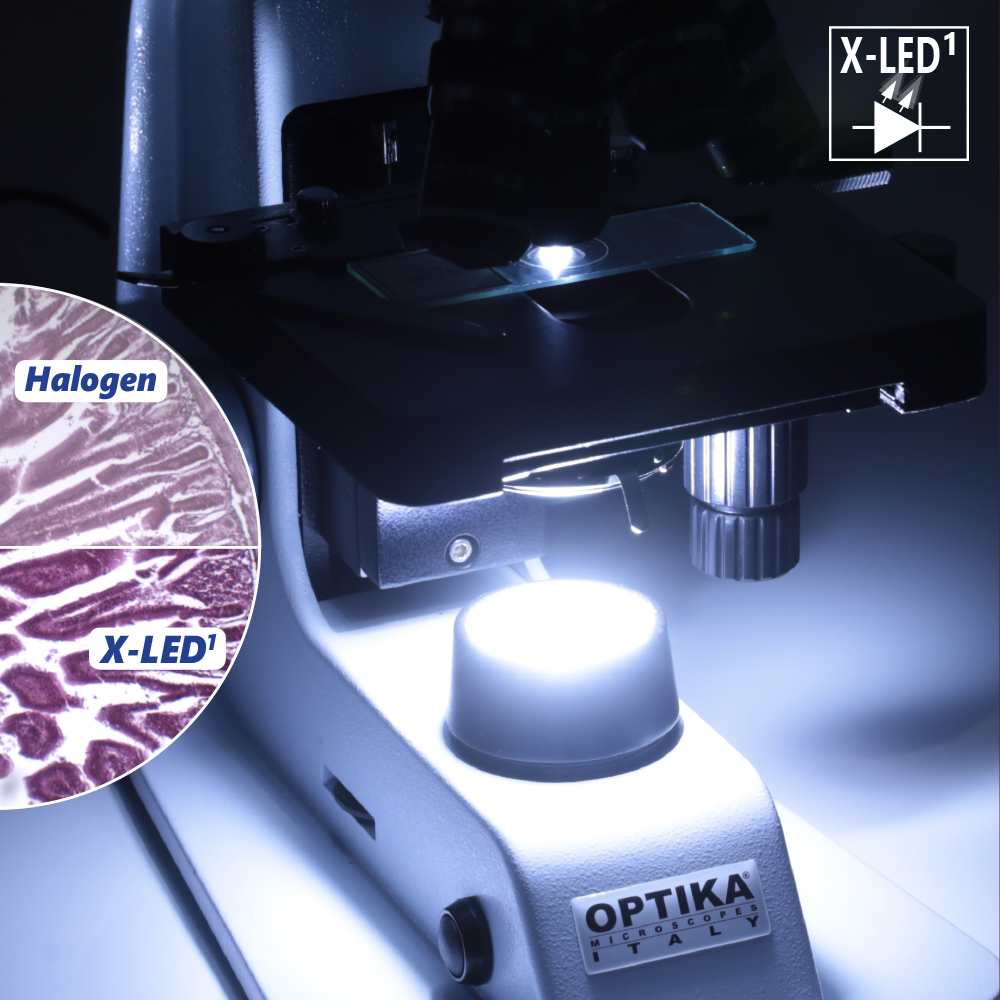

X-LED Lighting – Only available at Optika

Powerful and uniform Illumination

  • Incomparable light intensity, exclusive lens and collector design
  • Constant pure-white colour temperature at all intensity levels
  • Unmatched colour fidelity and brightness of your specimen

Money & energy saving

  • High energy efficiency at a limited cost
  • Incredibly low energy consumption, only 1W
  • LED long lifetime (50 hours = 20 years at 8 hours/ day usage)

Incorporating the most wanted features in a student microscope

Get all controls and features that are common to higher level microscopes: translating stage, binocular head, coaxial focus knob, adjustable condenser, and 1000x maximum magnification.

An extremely simple but well-equipped solution, in a modern and ergonomic design.

ALC – Only available at Optika

3-step easy setting

  • Choose the light intensity you prefer
  • Press the button and set the light
  • Change the objectives or close the diaphragm aperture: the microscope will keep the same light intensity!

Automatic light control & adjustment

  • When another objective is used
  • When the aperture diaphragm changes
  • When processing another sample with different opacity

Observation mode: Brightfield

Head: Binocular, 30? inclined; 360? rotating.

Eyepieces: WF10x/18 mm, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece.


? High Contrast Achromatic 4x/0.10, with anti-fungus treatment
? High Contrast Achromatic 10x/0.25, with anti-fungus treatment
? High Contrast Achromatic 40x/0.65 , with anti-fungus treatment
? High Contrast Achromatic 100x/1.25 (Oil/Water) , with anti-fungus treatment

Specimen stage: Mechanical stage, 125x116mm, 70_30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED1 with white 1 W LED and light intensity control.

Colour temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.

Dimensions: (H)350mm x (W)170mm x (D)210mm

Weight: 4kg

Additional information

Weight 5 kg
Dimensions 36 × 23 × 49 cm
