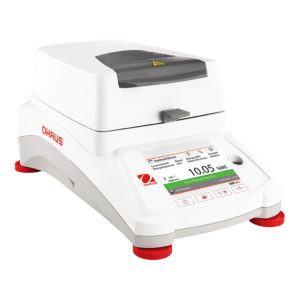

Moisture Analyser - MB120

Moisture Analyser - MB120

$4,145.00

plus GST

The MB120 delivers functionality and precision that you can rely on, and is easy to operate and clean – you can test more samples in less time! Advanced features such as a temperature guide help to analyze optimum drying temperature, and methods and results storage allows statistical analysis of measurements. Three levels of user management ensure data safety – set up and lock temperature settings and method parameters with administrator access.

Maximum capacity: 120 g

Readability Moisture Content: 1 mg/0.01%

Pan Size: 90 mm

Application: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing

Display: 4.3″ TFT color touchscreen display

Operation: Power cord (included)

Communication: RS232 with GLP/GMP data output, USB Host and USB Device (included)

Construction: Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover

Design Features:  Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 13 operational languages

Maximum capacity                120 g

Readability                              1 mg/0.01%

Pan Size (LxW)                       90 mm

Dimension (HxLxW)              180 mm x 355 mm x 211 mm

Net Weight                              5.23 kg

Heater Type                            Halogen Lamp

Communication                     USB host x 2;  USB device;  RS232

Display                                     Full-Color 4.3 in Touchscreen WQVGA

Heating Profiles                     Standard;  Ramp;  Step;  Fast

In-use Cover                            Included

Power                                       AC Adapter (included)

Moisture Range                     0 % – 100 %

Sample Size                            0.5 g – 120 g

Shut-Off Criteria                     Manual;  Timed;  Automatic – Preset Weight Loss/Time;  Custom – User Set Weight Loss/Time;  Custom-User Set Moisture% Loss/Time

Temperature Range               40°C – 230°C

Test Library                             100

Units of Measurement:         Gram; %MC; %RG; %DC

Working Environment           10°C – 40°C, 85%RH, non-condensing
