Ohaus FC5306 Frontier Mini Centrifuge

Ohaus FC5306 Frontier Mini Centrifuge



plus GST

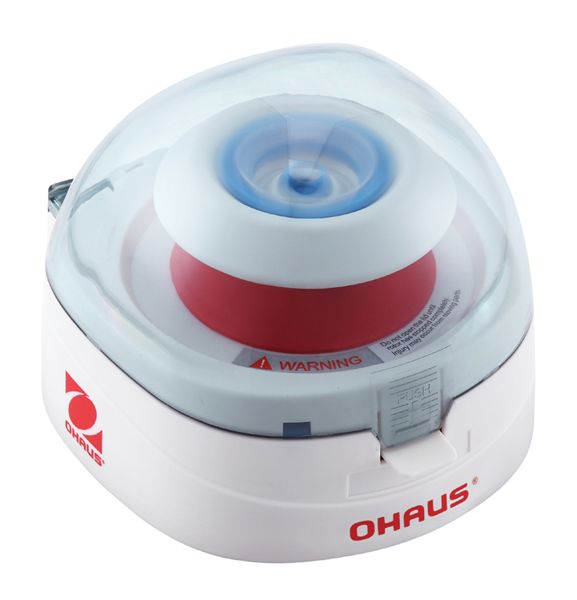

The Ohaus FC5306 Frontier Mini Centrifuge is ideal for simple and quick liquid separation.

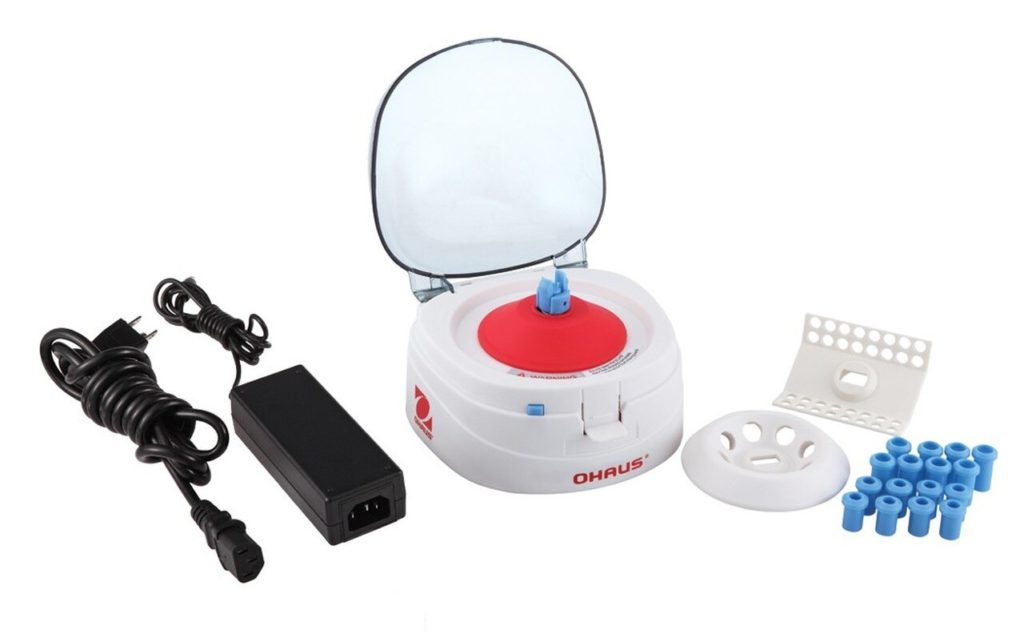

The Frontier FC5306 comes equipped with both 8 place 1.5/2 ml tube rotor as well as a 4 place PCR 8-strip tube rotor.
This mini centrifuge take the simple operation to the next level:

 + simple & quick operation: place your sample in the centrifuge, close the lid, and it will begin to rotate without the press of a button

 + simple and quick rotor release: allow you to install and remove the rotors quickly without any tools.

+ exceptionally quiet operation: low voltage power input, quiet brushless motor, rubber base that absorbs the vibration. This helps minimise the unwanted noise in the lab

+ rotor imbalance sensor & 2 safety switches to stop the centrifuge operating immediately in the event of the lid opening or rotor imbalance.


Speed Range: 1 rpm – 6,000 rpm

Maximum Relative Centrifuge Force (x g): 2,000 g

Maximum Capacity (Rotor): 8 x 1.5/ 2 ml

Application: Centrifugation

Display: N/A

Operation: A/C Adapter (included)

Communication: N/A

Construction: Brushless quiet motor, auto shut off safety switches

Design Features:  One-touch operation

Speed Range                                               0 rpm – 6,000 rpm

Maximum RCF (x g)                                   2,000 g

Maximum Capacity (Rotor)                       8 x 1.5/2.0 ml

Program memories                                     0

Rotor in Package                                         Angle 8 x 1.5 ml / 2.0 ml;

                                                                       Angle rotor 4 x 8 place PCR Strips

Acceleration Gear                                       1

Deceleration Gear                                       2

Dimensions (HxLxW)                                 128 mm x 168 mm x 150 mm

Display                                                           No display

Lid lock                                                          Mechanical

Net Weight                                                    1.1 kg

Noise level                                                     ≤60±2 dB(A)

Power                                                              120 – 240 V

Power Consumption                                      N/A

Pre-cool Time                                                  N/A

Rotor Compatibility                                         Angle 8 x 1.5 ml / 2.0 ml;

                                                                           Angle rotor 4 x 8 place PCR Strips

Running Time                                                   Continuous

Safety Certification                                           CE; FCC; TUV

Working Environment                                       5°C – 40°C, 80%RH, non-condensing)
