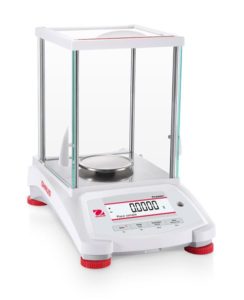

OHAUS PX224/E

Ohaus PX224/E

220 g x 0.0001 g

$2,230

plus GST

The Pioneer PX Series are ideal for laboratories, universities, and applied science applications that require exceptionally accurate and precise measurements.

The Pioneer PX series are designed to be durable and versatile and perform outstanding at an affordable price.

What makes the PX224/E stand out?

  • Large dual-line backlit LCD display shows additional info and user prompts.
  • Integrated grounding rod removes static electricity to improve weighing results.
  • Durable design with die-cast metal base.
  • Standard RS-232 & USB ports for easy connectivity to printers and other devices.
  • 4 quick keys allow easy operation of multiple application modes.

Application: Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination

Display: LCD; Second line display for additional information or guidance (dot matrix)

Operation: AC Adapter (included)

Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock

Construction: Mental base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh below hook, security bracket, calibration lock and in-use cover.

Design Features: User-selectable environmental filters and brightness settings, auto tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, 4 operating languages.

Maximum capacity                 220 g

Readability                               0.0001 g

Net Weight                               4.5 kg

Minimum Weight                    200 mg

(USP, 0.1% typical)

Stabilisation Time                  3 s

Pan Size (LxW)                      90 mm

Dimension (HxLxW)              309 mm x 321 mm x 209 mm

Internal Calibration                N/A

Battery Life                             N/A

Built-in lonizer                        No

Communication                     RS232; USB

Display                                     2-Line LCD with Backlight

Draftshield                               Included

In-use Cover                            Included

Legal for Trade                       No

Pan Construction                   Stainless Steel

Power                                      AC Adapter (included)

Tare Range                             To capacity by subtraction

Units of Measurement:         Milligram; Gram; Kilogram; Baht; Custom; Mesghal; Momme; Ounce; Ounce Troy; Tical; Tola; Hong Kong Tael; Singapore Tael; Taiwan Tael;

Working Environment           10°C – 30°C, 80%RH, non-condensing; operability guaranteed between 5°C – 40°C

Auxiliary Display Model        Available as an accessory
