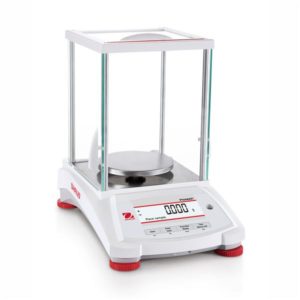

Ohaus PX223/E – Pioneer PX Series combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings.

The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Maximum capacity: 220 g

Readability: 0.001 g

Pan Size: 120 mm

Application: Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination

Display: LCD; Second line display for additional information or guidance (dot matrix)

Operation: AC Adapter (included)

Communication: RS232 and USB device (included); GLP/GMP data output with real-time clock

Construction: Mental base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh below hook, security bracket, calibration lock and in-use cover.

Design Features: User-selectable environmental filters and brightness settings, auto tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, user-selectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, 4 operating languages.

Maximum capacity                 220 g

Readability                               0.001 g

Net Weight                               4.5 kg

Minimum Weight                    2 g

(USP, 0.1% typical)

Stabilisation Time                  2 s

Pan Size (LxW)                      120 mm

Dimension (HxLxW)              309 mm x 321 mm x 209 mm

Internal Calibration                InCal™, – Semi Automatic

Battery Life                             N/A

Built-in lonizer                        No

Communication                     RS232; USB

Display                                     2-Line LCD with Backlight

Draftshield                               Included

In-use Cover                            Included

Legal for Trade                       No

Pan Construction                   Stainless Steel

Power                                      AC Adapter (included)

Tare Range                             To capacity by subtraction

Units of Measurement:         Milligram; Gram; Kilogram; Baht; Custom; Mesghal; Momme; Ounce; Ounce Troy; Tical; Tola; Hong Kong Tael; Singapore Tael; Taiwan Tael;

Working Environment           10°C – 30°C, 80%RH

Auxiliary Display Model        Available as an accessory
