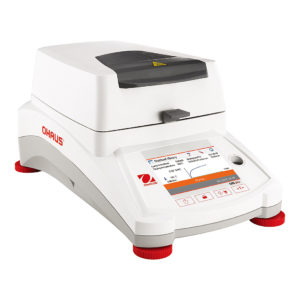

Moisture Analyser - MB90

Moisture Analyser - MB90


ex. GST & Freight

Measuring moisture content has never been easier than with the MB90 Moisture Analyzer. The MB90’s halogen heating distributes heat uniformly over the sample and speeds up the drying process, delivering fast and precise measurements. Designed for tool-free cleaning, its components can be easily removed for quick and easy maintenance. Operating the MB90 is intuitive with the icon-driven menu navigation on the touchscreen display.

Maximum capacity: 90 g

Readability Moisture Content: 1 mg/0.01%

Pan Size: 90 mm

Application: Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing

Display: 4.3″ TFT color touchscreen display

Operation: Power cord (included)

Communication: RS232 with GLP/GMP data output, USB Host and USB Device (included)

Construction: Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover

Design Features:  Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 13 operational languages

Maximum capacity                90 g

Readability                              1 mg/0.01%

Pan Size (LxW)                       90 mm

Dimension (HxLxW)              210 mm x 180 mm x 350 mm

Net Weight                              5.23 kg

Heater Type                            Halogen Lamp

Communication                     RS232; USB Host x 2; USB Device

Display                                     4.3″ TFT color touchscreen display

Heating Profiles                     Standard; Fast

In-use Cover                            Included

Moisture Range                     0 % – 100 %

Sample Size                           0.5 g – 90 g

Power                                      AC Adapter (included)

Temperature Range              40°C – 230°C

Units of Measurement:         Gram; %MC; %RG; %DC

Working Environment           10°C – 40°C, 85%RH, non-condensing
