EDU 305

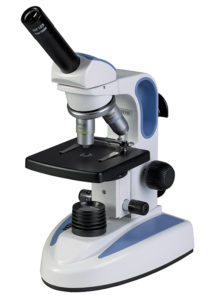

Biological Microscope
EDU 305


ex. GST & Freight

Membership points earned (EA): 6

Junior Model
  • Viewing Head: Monocular 45 degree incline and 360 degree rotatable
  • Eyepiece: WF 10x 18mm field of view
  • Objective: Achromatic 4, 10 and 40 times
  • Stage: Stage clips
  • Stage size: 119mm x 119mm
  • Condenser: Five aperture disc
  • Illumination: LED

Special Deals

Order 5+:
  • Discount to $239 (ex. GST & Freight) EA
  • A free objective 40x worth $45 for every 5 microscopes ordered
  • 10% OFF next services for EDU 305 during their lifetime (This does not include the price of any replacement parts)
  • Viewing Head                 Monocular, dual inclined or inclined/vertical teaching head, inclined 45º,                                                 rotatable 360º.
  • Optical System              DIN Optical System, f = 160 mm
  • Objectives                      Standard configuration includes DIN achromat 4x, 10x and 40xR (spring-                                               loaded) objectives; 179 models will also include a 100xR (spring-loaded)                                               oil objective
  • Eyepieces                       WF10x eyepieces, 18mm field of view with pointer; eyepieces are locked-                                               in to prevent classroom tampering
  • Nosepiece                      Rare facing three-hole, ball-bearing nosepiece with positive click stops to                                              ensure parcentration; a quadruple nosepiece is provided on the EDU 305                                                model
  • Focusing System          Separate coarse and fine focus adjustment controls; a tension                                                                adjustment is on the coarse control; a built-in slop clutch system and pre-                                              set focus stop prevents accidental damage to objectives and slides
  • Stage                              119mm x 119mm with stage clops, or factory-installed double-plate                                                        mechanical stage with low position controls and Iris diaphragm
  • Condenser                     N.A. 0.65 condenser with five aperture disc or Iris diaphragm depending                                                on the model; an N.A. 1.25 Abbe condenser with Iris diaphragm on a                                                      spiral mount is supplied on EDU 305
  • Stand                             Cast alloy aluminum with built-in carry handle and cord hanger
  • Accessories                 Dust cover, instruction manual included
  • Optional Accessories Viewing Heads: dual inclined or inclined/ vertical teaching head;                                                             Eyepieces: 15x/ 15mm; 20x/ 12mm; Objectives: 20x, 60xR*, 100xR* oil                                                   (*spring-loaded)
  • Warranty                       5 year limited warranty for parts, labor and electronic components; 1 year                                               warranty on LED bulb
